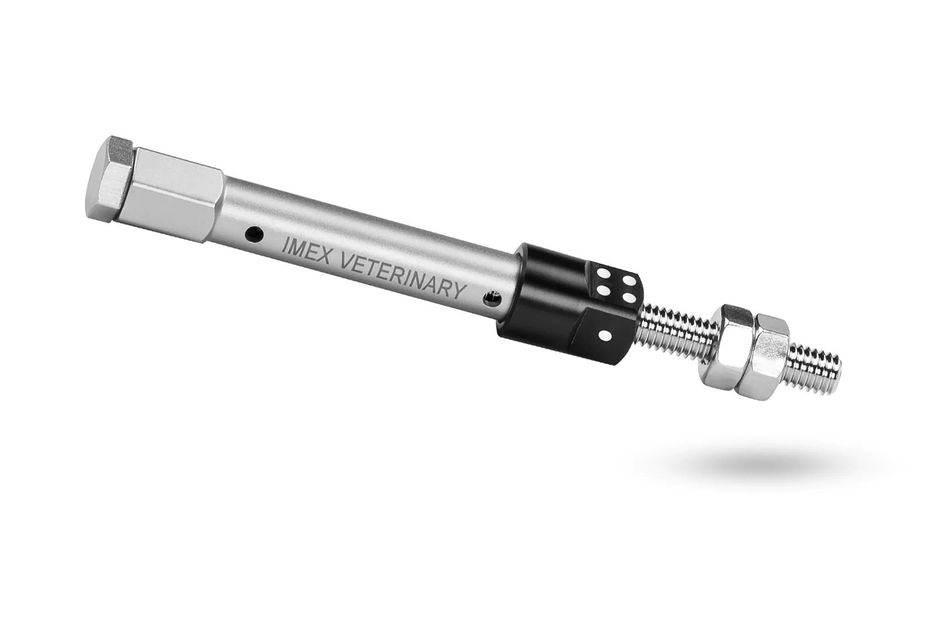

Linear distraction motors are the simplest method of constructing CESF frames for limb lengthening and are designed to simplify daily patient management. Capable of being swapped-out in sequence to maintain frame integrity over long distractions. Zero tolerance/zero motion design helps ensure owner compliance and patient comfort. Features:Drive face clearly marked to indicate 1/4 revolutions as well as distraction/compression direction1.0 mm thread pitch3mm hex drive recess10 mm wrench flatsStainless body and threaded rod with nylon drive bushingsNot available for the mini CESF system U.S. Patent #5,968,043
2.25100
100 mm
Linear distraction motors are the simplest method of constructing CESF frames for limb lengthening and are designed to simplify daily patient management. Capable of being swapped-out in sequence to maintain frame integrity over long distractions. Zero tolerance/zero motion design helps ensure owner compliance and patient comfort.
Features:Drive face clearly marked to indicate 1/4 revolutions as well as distraction/compression direction1.0 mm thread pitch3mm hex drive recess10 mm wrench flatsStainless body and threaded rod with nylon drive bushingsNot available for the mini CESF system
U.S. Patent #5,968,043
Product #: 2.25100
2.25500
50 mm
Linear distraction motors are the simplest method of constructing CESF frames for limb lengthening and are designed to simplify daily patient management. Capable of being swapped-out in sequence to maintain frame integrity over long distractions. Zero tolerance/zero motion design helps ensure owner compliance and patient comfort.
Features:Drive face clearly marked to indicate 1/4 revolutions as well as distraction/compression direction1.0 mm thread pitch3mm hex drive recess10 mm wrench flatsStainless body and threaded rod with nylon drive bushingsNot available for the mini CESF system
U.S. Patent #5,968,043
Product #: 2.25500
2.25700
70 mm
Linear distraction motors are the simplest method of constructing CESF frames for limb lengthening and are designed to simplify daily patient management. Capable of being swapped-out in sequence to maintain frame integrity over long distractions. Zero tolerance/zero motion design helps ensure owner compliance and patient comfort.
Features:Drive face clearly marked to indicate 1/4 revolutions as well as distraction/compression direction1.0 mm thread pitch3mm hex drive recess10 mm wrench flatsStainless body and threaded rod with nylon drive bushingsNot available for the mini CESF system
U.S. Patent #5,968,043
Product #: 2.25700
